DEMAISI CNB1 20*40*7 Power Steering Rack Seal with Back-up Ring

Product > Steering oil seal > DEMAISI CNB1 20*40*7 Power Steering Rack Seal with Back-up Ring
    • 1
    • 2
    • 3

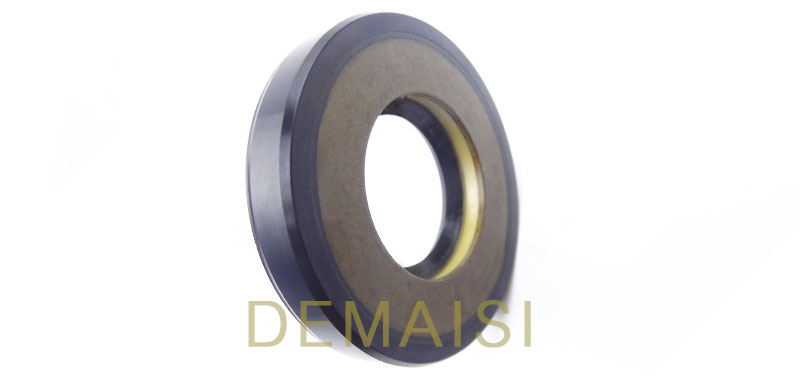

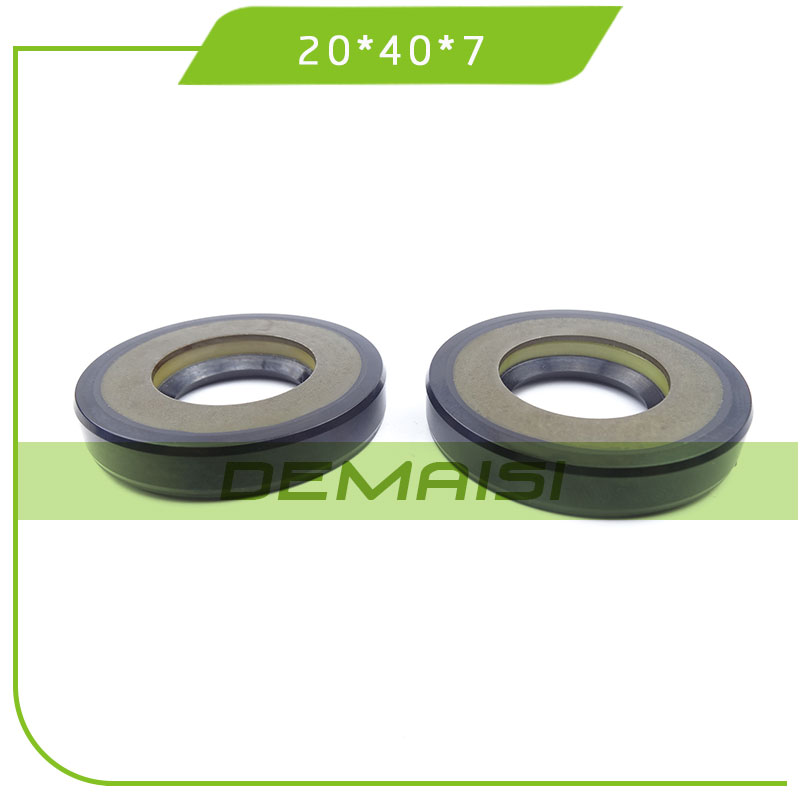

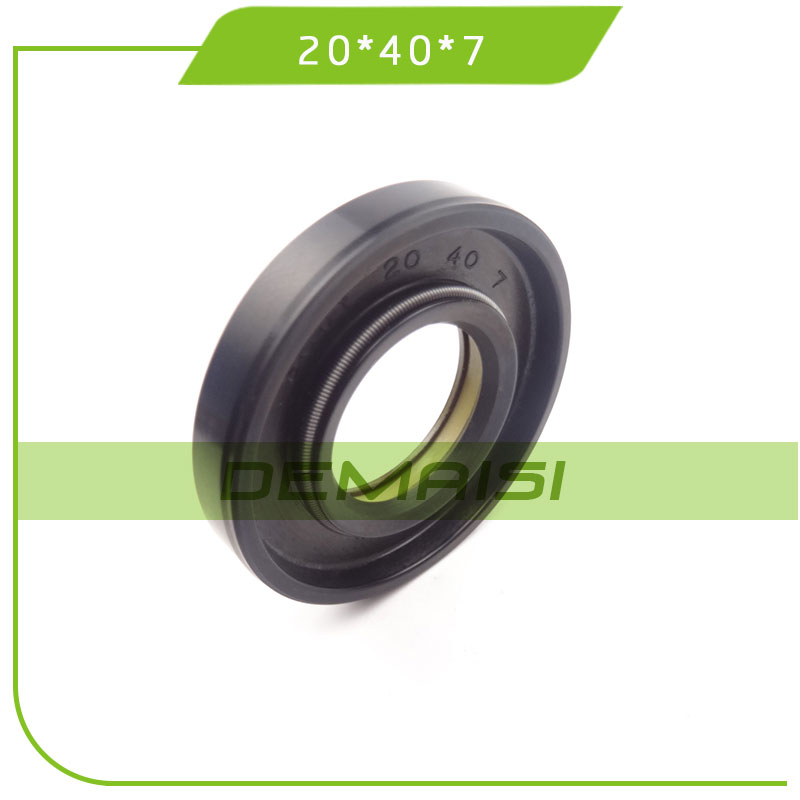

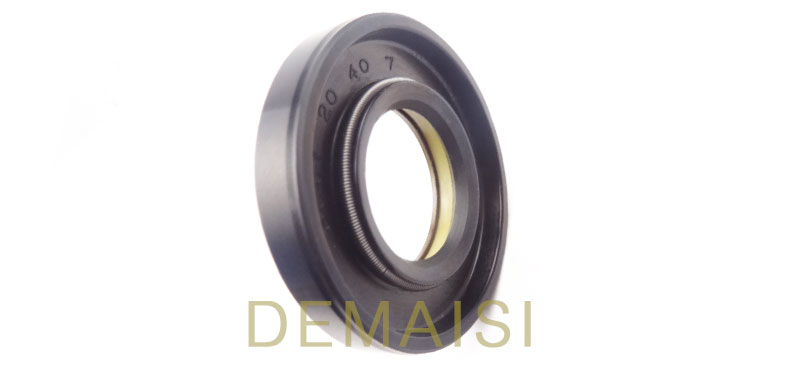

DEMAISI CNB1 20*40*7 Power Steering Rack Seal with Back-up Ring

DEMAISI CNB1 20*40*7 High pressure bogie oil seal for auto parts
On sale： $2.50~3.50
shared：
NBR HNBR
>100


         DEMAISI  Cnb1 20*40*7 Power Steering Rack Seal with Back-up Ring
Item:                                                             Power Steering Oil Seal
Size :                                                            20*40*7
ID (inner diameter)/Bore :                             24mm
OD (outer diameter) :                                   40mm
Width/Height/Thickness :                              7 mm
Materials:                                                       NBR/HNBR

Power Steering Rack Seal  usually has a nylon supporting ring, to meet the lips requirement of bearing pressure, which is usually made of HNBR. We offer the NBR and HNBR material products, customers can choose according to actual demand freedom.

Product design

a. Power Steering Rack Seal  has the characteristics of the engine oil resistance and low friction during operation
b. The design of back-up ring can increase the pressure tolerance and prevent the lip from overturning

Brand:DEMAISI      Size:20*40*7  20-40-7  20x40x7   20 40 7

NO.TYPESIZENO.TYPESIZE
1CNB812*27*10/10551TC4P25*38*7/7.8
2TC4P17*30*6/6.552TC4P25*40*8.9
3TC4P18*30*6.4/753GNB125*41*7.5
4TC4P18*32*6/754GNB125*41.2*8
5TC4P18.75*30*5/7.355GNB125*42*8.5
6TCL18.75*37.5*5.5/7.556CNB725*42.5*12.5
7TC4P19*29*7/857GNB125*42.5*8.5
8TC4P19*32*6/758GNB125*43*8
9TC4P19*32*7/859CNB225*37.5/41.5*3.2/7.4
10TC5P19*32*6/760GNB25.5*41.1*8
11TC4P19*32*7/861GNB25.5*41.1*8
12TG4P19*35*5/5.562TC4P26*34*4.5/7
13TG4P19*38*7/7.863TC4P26*35*5.8/6.3
14TC4P19*38.1*6.5/964TC4P26*35.5*6/6.35
15TC4P19.05*34.64*6.28/965SC4P26*35.5*6.5
16TG4P20*30*5.5/666TG4P26*35.5*6.8/7.3
17TC420*36*767CNB1126*37.5*6.5
18TG4P20*39.62*6.35*768SCNP26*38*6.5/7
19TC420*40*769CNB26*38*8.5
20TC4Y21*33*8/9.570CNB13W1126*38*9/10
21CNB22*32*771TC4P26*38*6.5/7
22CNB2122*32*872CNB126*41*8.5
23CNB22*37*973GNB126*43*8.5
24TC4P122*37*7.5/9.574CNB126*44*8.5
25CNBW1122*38*875SCN2P27*37*3.5/7
26TG4P22.3*32.2*5/5.776TC427*37*7.5/9.5
27CNB222.5*34.3/40.2*7.577CNB27*38*8.5
28GNB223*34.2/38*878SC4P27*38*5.5
29SCAP23.3*37.5*679CNB127*38*5.5
30
24*29.7*480TC427*39*10.5
31TG4P24*33*5/5.581CNB127*41*8.5
32CNB124*35*8.582CNB127*44*8.5
33CNB124*37*8.583CNB11W1127.7*42*9/10
34CNB124*38*884CNB5W1127.7*46*13/14
35GNB124*38*8.585TC4P28*38*7/7.5
36GNB124*38*7.586TG4P28*38*6.5/7
37CNB1-BR24*40*887CNB528*38*15/17
38CNB124*40*888CNB2028*41*8.5
39GNB124*40*889CNB1W1128*41*8
40CNB124*41*8.590CNB129*42.5*8
41GNB124*41*8.591SCN2P29.75*23.36*4/6
42CNB124*42*892TG4P30*42*7/7.5
43CNB124*42*893GNB130*42.5*8
44CNB524*42.5*1394GNB130*48*8
45CNB1W24*42.5*895GNB130*48*8.5
46GNB124*42.5*1096CNB1130*50*8.5
47CNB25*37.5*797SC4P32.7*42.7*6.5
48TC4P25*38*7/7.898CNB135*47*7
49CNB1325*38*7/899CNB135*53*8
50TC4P25*38*7/7.8100CNB135*56*8
